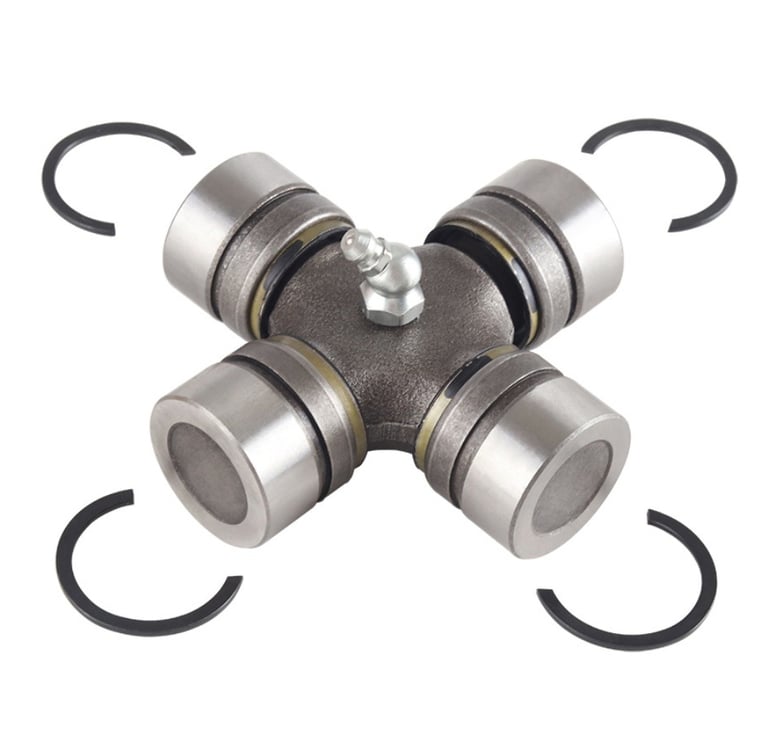

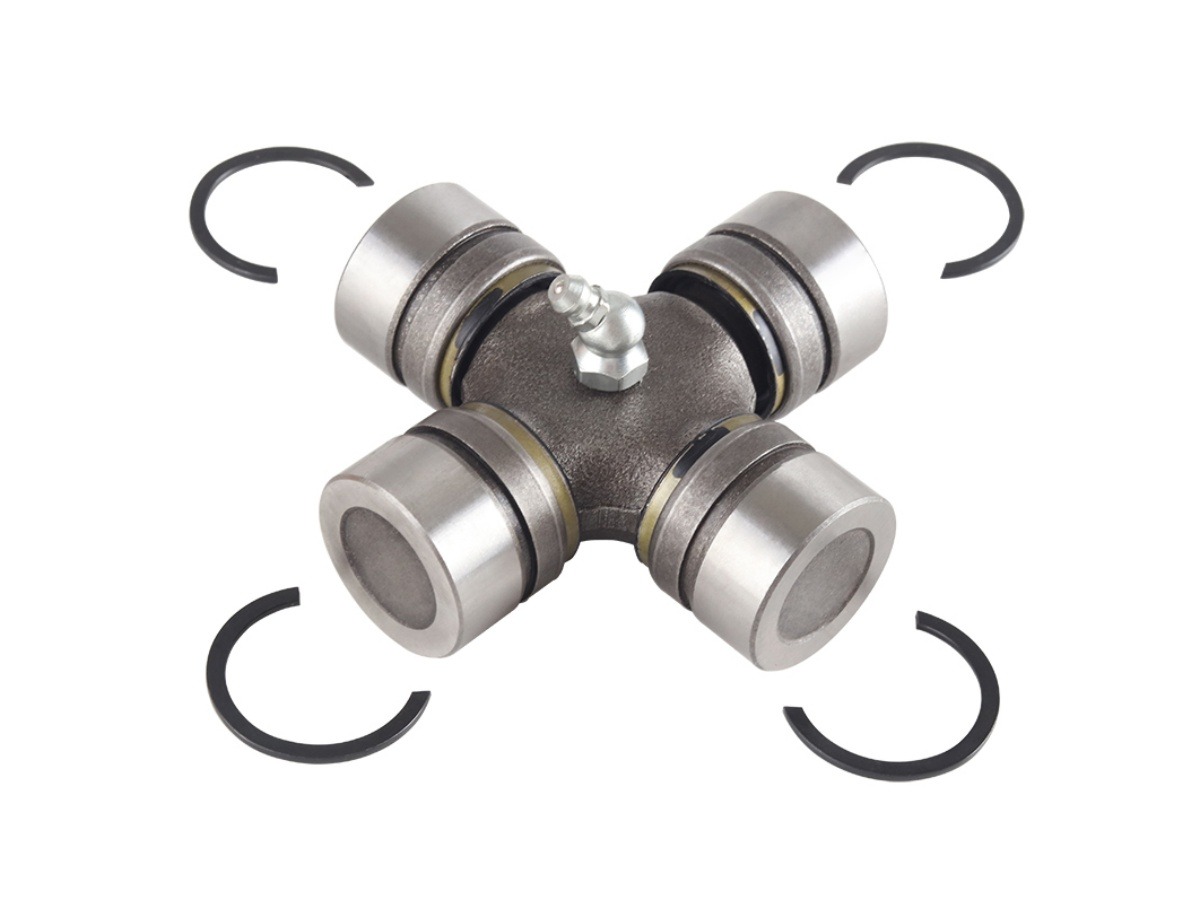

Internal clip universal joint

Key Design Features:

1. External Clip Retention Design

• Quick-Install External Circlips – Bearing caps secured by external snap rings for rapid assembly and disassembly

• Visual Inspection Capability – External clip position easily verified without disassembly

• Tool-Free Maintenance – Standard circlip pliers enable fast bearing replacement in the field

• Secure Retention – High-tension spring steel clips prevent cap loosening under vibration

2. Superior Torque Transmission

• Precision-ground cross journal with hardened bearing surfaces (HRC 58-62)

• Needle roller bearings with high load capacity and low friction

• Operating angles up to 25°-30° (single joint), 40°+ with double joint configuration

3. Industrial-Grade Durability

• Cross and bearing caps manufactured from 20CrMnTi or 20Cr alloy steel

• Carburizing and hardening heat treatment for wear resistance

• Sealed grease lubrication with multi-lip nitrile rubber seals

• Corrosion-resistant coating options: black oxide, zinc plating, or phosphating

4. Versatile Configuration Options

• Single Joint – For simple angular misalignment

• Double Joint – For parallel offset or high-angle applications

• Telescopic Shaft Integration – With splined slip yoke for length adjustment

• Flange or Welded Yoke Ends – Multiple connection options available

Applications

✓ Automotive Drivelines – Propeller shafts, drive axles, steering columns
✓ Agricultural Machinery – Tractors, harvesters, PTO drivelines
✓ Construction Equipment – Excavators, loaders, concrete pumps
✓ Industrial Machinery – Conveyors, mixers, printing presses
✓ Marine Propulsion – Drive shafts, auxiliary equipment
✓ Railway Systems – Coupling drives, maintenance vehicles

Customization Services

We offer comprehensive OEM/ODM services to meet your specific requirements:

• Non-Standard Sizes – Custom cross diameters and bearing configurations

• Special Materials – Stainless steel for corrosive environments

• High-Temperature Seals – Viton or PTFE for extreme heat

• Grease Types – Food-grade, high-temperature, or marine-grade lubricants

• Yoke Modifications – Welded, forged, or machined end fittings

• Packaging – Individual retail boxes or bulk industrial packaging

Why Choose Hangzhou Ocean Industry Co., Ltd.?

20+ Years Manufacturing Experience in automotive driveline components
Global Export Network – Serving customers in 50+ countries
Advanced Production Facilities – CNC machining, heat treatment, dynamic balancing
Reliable Lead Times – 15-30 days for standard products, 45-60 days for custom orders
Professional Technical Support – Engineering team with automotive industry expertise
Long-term Partnership Approach – Dedicated account management for strategic clients

The Internal Clip Universal Joint from Hangzhou Ocean Industry Co., Ltd. is a precision-engineered mechanical coupling designed to transmit torque between two shafts that are angularly misaligned. Featuring an external clip retention system, this universal joint offers secure bearing cap retention, easy maintenance access, and reliable performance across a wide range of industrial and automotive applications.

Crafted with high-grade alloy steel and precision machining, this universal joint ensures smooth power transmission, minimal backlash, and extended service life even under demanding operating conditions.
